FRIEDMAN BE Deluxe DUAL CHANNEL ALL-TUBE MODULE

 Like all Synergy Friedman modules, the BE-DLX was designed by Dave Friedman himself. Both all-tube channels are identical recreations of the BE tube preamp but feature a full, independent suite of controls, including volume, gain, and a 3-band EQ per channel for added flexibility. Their BE/HBE mini toggles takes you from responsive, bluesy crunch to the high gain used by today’s most respected rock and metal guitarists. Set one channel to a vintage rock crunch and the other to an HBE-powered modern metal tone. Or switch between a rhythm and boosted lead sound.

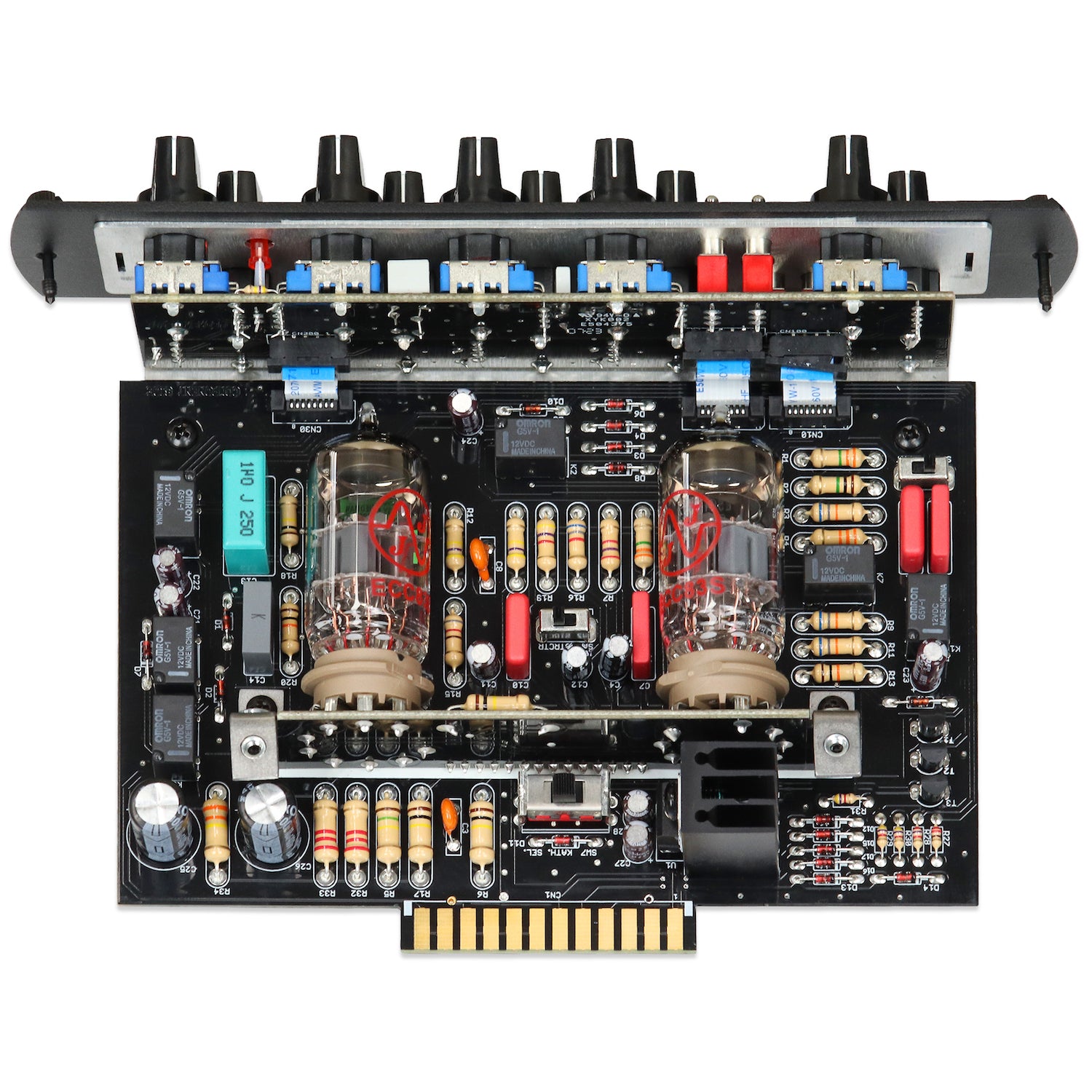

The BE-DLX module features two circuit board mounted switches. A two position FAT switch lets you add overall low-end response. The Gain Structure switch lets you reduce the gain of the module for a classic vintage tone.

The Synergy BE DLX module is like having two legendary Friedman amplifiers in one compact, all-tube, and incredibly convenient package.
Friedman BE-DLX Preamp Module Features:
All-tube preamp module custom designed by Dave Friedman
Two identical channels with Gain, Volume and 3-Band EQ
BE/HBE Switch per channel
SAT (Saturation Switch) per channel
PCB Mounted FAT switch (lets you add overall low-end response)
PCB Mounted Gain Structure switch (lets you reduce the overall gain)
2 x 12AX7 preamp tubes ensure rich harmonic performance
Easy to install and remove from Synergy preamp docks

CATHODE SELECT FUNCTION

The Friedman BE-DLX module features a patented three-position switch on the PCB, which allows you to configure the input tube bass response to match the original circuit of the selected module.

This will affect the feel and tightness. Each amp designer has a specific combination of components that make up their input tube circuit. Synergy has selected the three most popular combinations which you can access with this switch. The USA voiced modules typically use setting 1 (1.5K resistor and 22uf capacitor). British-style modules use position 2 (2.7K resistor and .68uf capacitor). The SOLDANO / VAI module use position 3 (1.8K resistor and 1uf capacitor).

Of course, you can experiment and try any of the positions to see what you prefer. The BE-DLX is present to the center position 2 (2.7K resistor and .68uf capacitor). Synergy hardware and interchangeable preamps are protected under US patent.The BE-DLX module features two circuit board mounted switches. A two position FAT switch lets you add overall low-end response. The Gain Structure switch lets you reduce the gain of the module for a classic vintage tone.
